TJEP Compact Tier 40 | Collated Fasteners

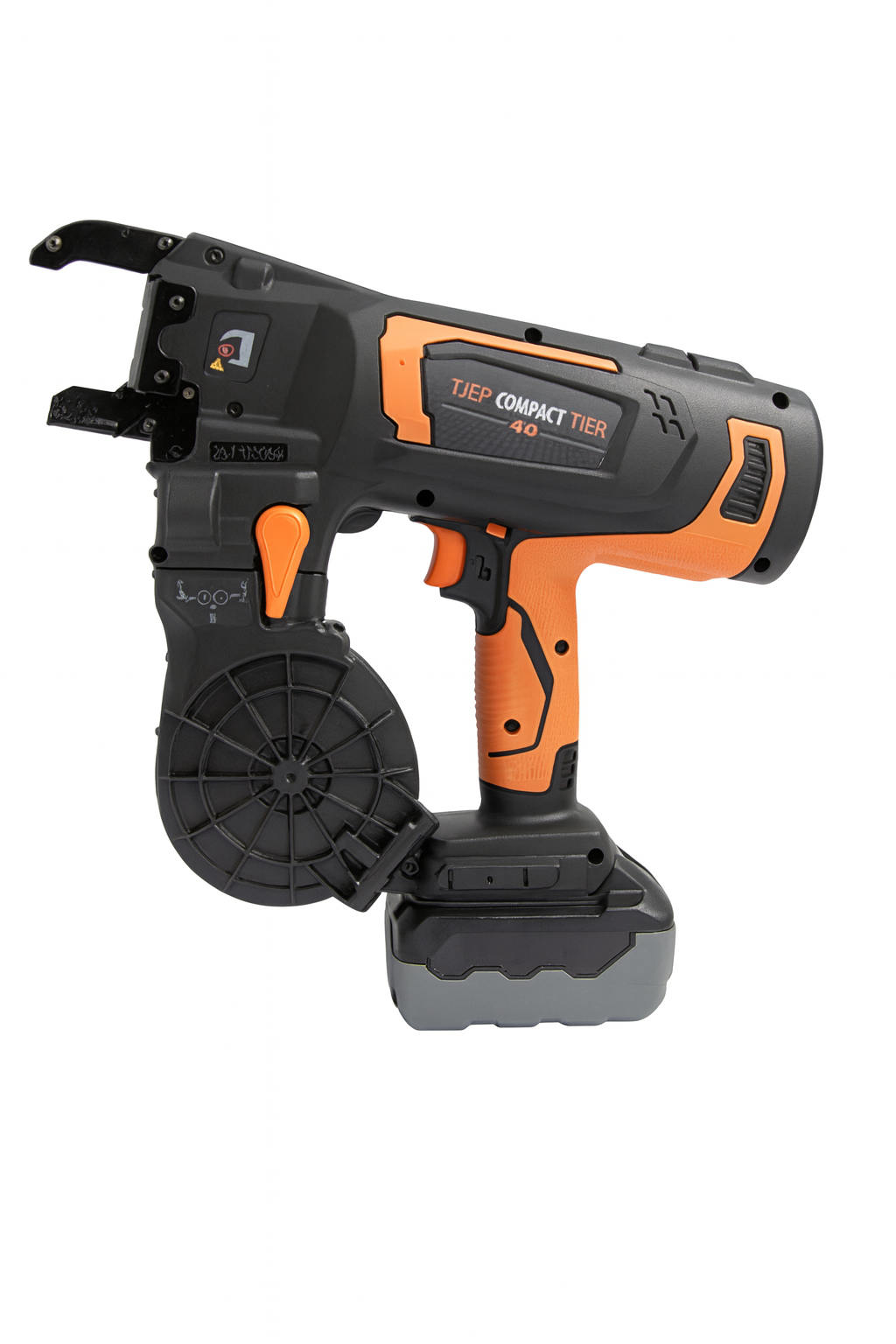

TJEP Compact Tier 40 Cordless Rebar Tying Tool

The TJEP Compact Tier 40 is a professional cordless rebar tying tool designed for fast, clean, and cost-effective tying. With a 0.5 second tying cycle, pull-back wire feed for tight ties, and a slim nose for tight-access work, it delivers high output with minimal wire waste. Powered by the 18V TJEP UniKIT battery system and supplied as a complete kit.

What's in the Kit

• TJEP Compact Tier 40 rebar tying tool

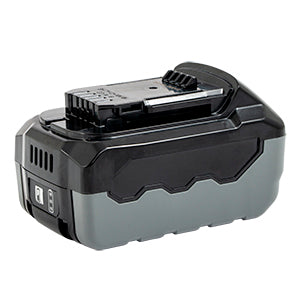

• 2x 4.0Ah 18V batteries

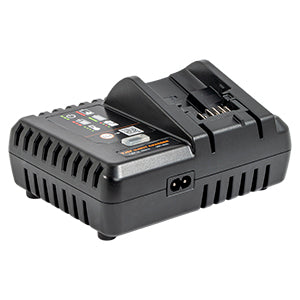

• Charger

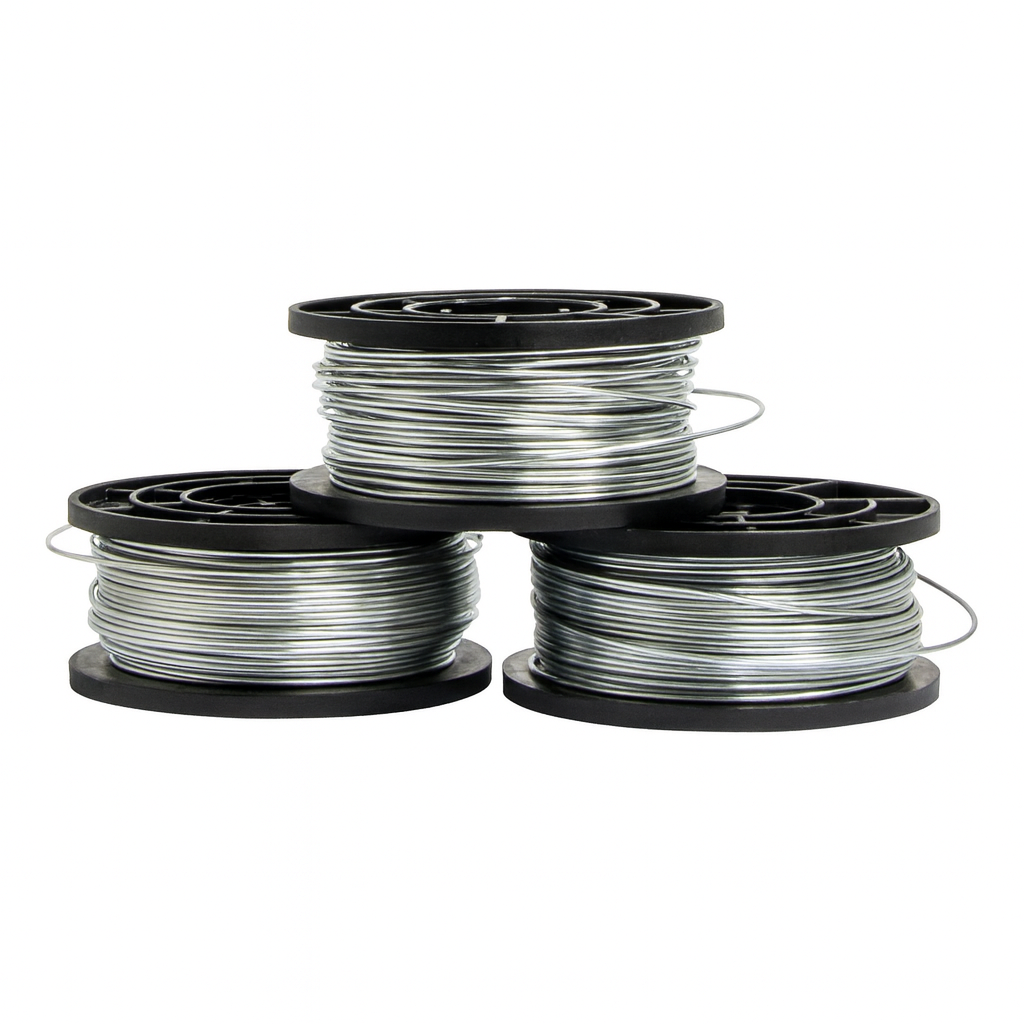

• 2x wire coils

Specifications

• Model: Compact Tier 40
• Tying time: 0.5 seconds
• Wire: 1.3mm single wire (TJEP 125153)
• Torque control: Digital, levels 1–6
• Battery: 18V TJEP UniKIT (4.0Ah)
• Tie height: Low profile, no tail

Key Features

• 0.5 second tying cycle for high-volume output
• Pull-back wire feed for tight, clean ties
• Low tie height with no tail — reduces concrete consumption
• Slim nose fits tight angles and congested rebar layouts
• Digital torque control (6 levels) for consistent tie strength
• Quick wire reload for minimal downtime
• Trigger lock for safe operation
• Light and balanced for all-day use

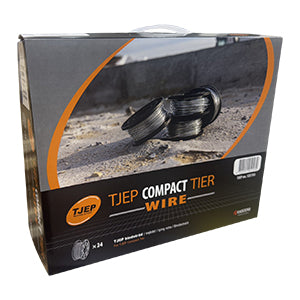

Compatible Wire

Use TJEP 125153 Compact Tier Wire for optimum performance.

Applications

• Concrete slab and floor reinforcement
• Foundations, beams, and structural steelwork
• Tight-access rebar tying on construction sites

For bulk orders please call 01246 946381.
