Max CN70 Heavy Duty Coil Nailer up to 70mm | Collated Fasteners

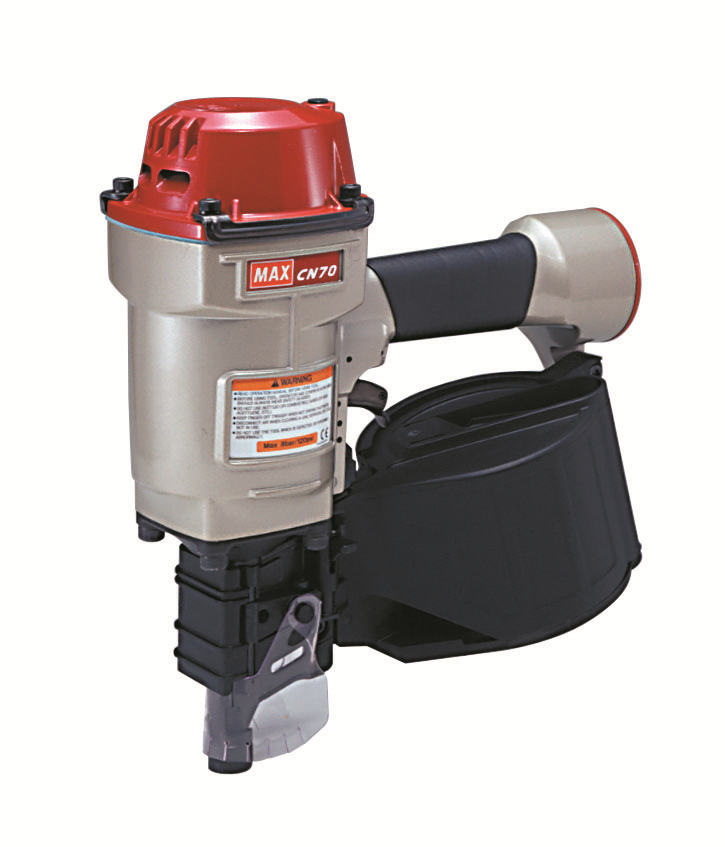

MAX CN70 Heavy Duty Coil Nailer up to 70mm

The MAX CN70 is one of the lightest heavy duty coil nailers on the market at just 3.5kg. Its high capacity magazine holds up to 300 nails to minimise production interruption, and the swing-out magazine top reloads in seconds. An adjustable-height nail tray allows quick changes between nail lengths from 45mm to 70mm, while a trigger lock prevents accidental firing when the tool is not in use. Full round head nails deliver strong holding power and a clean finish.

• Nail gauge: 2.3–2.5mm
• Nail length: 45mm–70mm
• Nail type: Full round head — wire-welded flat coil nails (ring, smooth and screw shank)
• Load capacity: Up to 300 nails
• Weight: 3.5 kg
• Dimensions: 315mm (H) x 306mm (L)
• Operating pressure: 60–100 PSI (4.8–7 bar)
• Mode of operation: Contact or sequential actuation
• Trigger lock to prevent accidental firing
• Adjustable-height nail tray for quick nail length changes

Applications include packaging, pallets and pallet repair, subflooring, and crate and box assembly. Compatible with MAX wire-welded flat coil nails 45–70mm full round head.
