Max CN550S/CE Collation Wire and Plastic Coil Nailer | Collated Fasteners

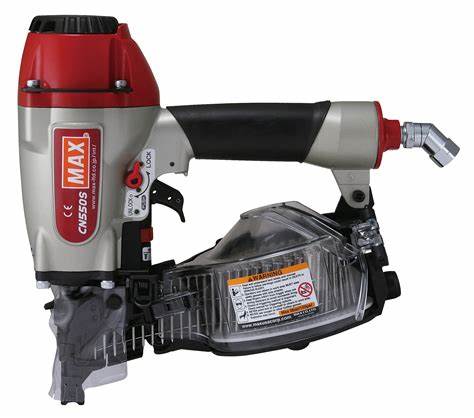

MAX CN550S/CE Wire and Plastic Collation Coil Nailer

The MAX CN550S/CE is one of the lightest coil nailers in its class at just 2.0kg, with a high capacity magazine of up to 400 nails to minimise production interruption. The swing-out magazine top reloads in seconds, and an adjustable-height nail tray allows quick changes between nail lengths from 25mm to 50mm. It accepts both wire-welded conical and plastic sheet collated nails without any adjustment, making it a flexible choice for furniture, packaging and pallet work.

• Nail collation: Wire-welded conical or plastic sheet collated — full round head
• Nail length: 25mm–50mm (ring, smooth and screw shank)
• Load capacity: Up to 400 nails
• Weight: 2.0 kg
• Dimensions: 275mm (H) x 270mm (L)
• Operating pressure: 60–100 PSI (4.8–7 bar)
• Mode of operation: Contact or sequential actuation
• Swing-out magazine top for fast reloading
• Adjustable-height nail tray for quick nail length changes
• Trigger lock to prevent accidental firing
• Dial adjustable depth of drive control

Applications include furniture frames, packaging, pallets and pallet repair, subflooring, and crate and box assembly. Compatible with MAX wire-welded conical and plastic sheet collated coil nails 25–50mm.
