Bostitch D31AD-E SW9060 Extra Wide Crown Carton Sealer

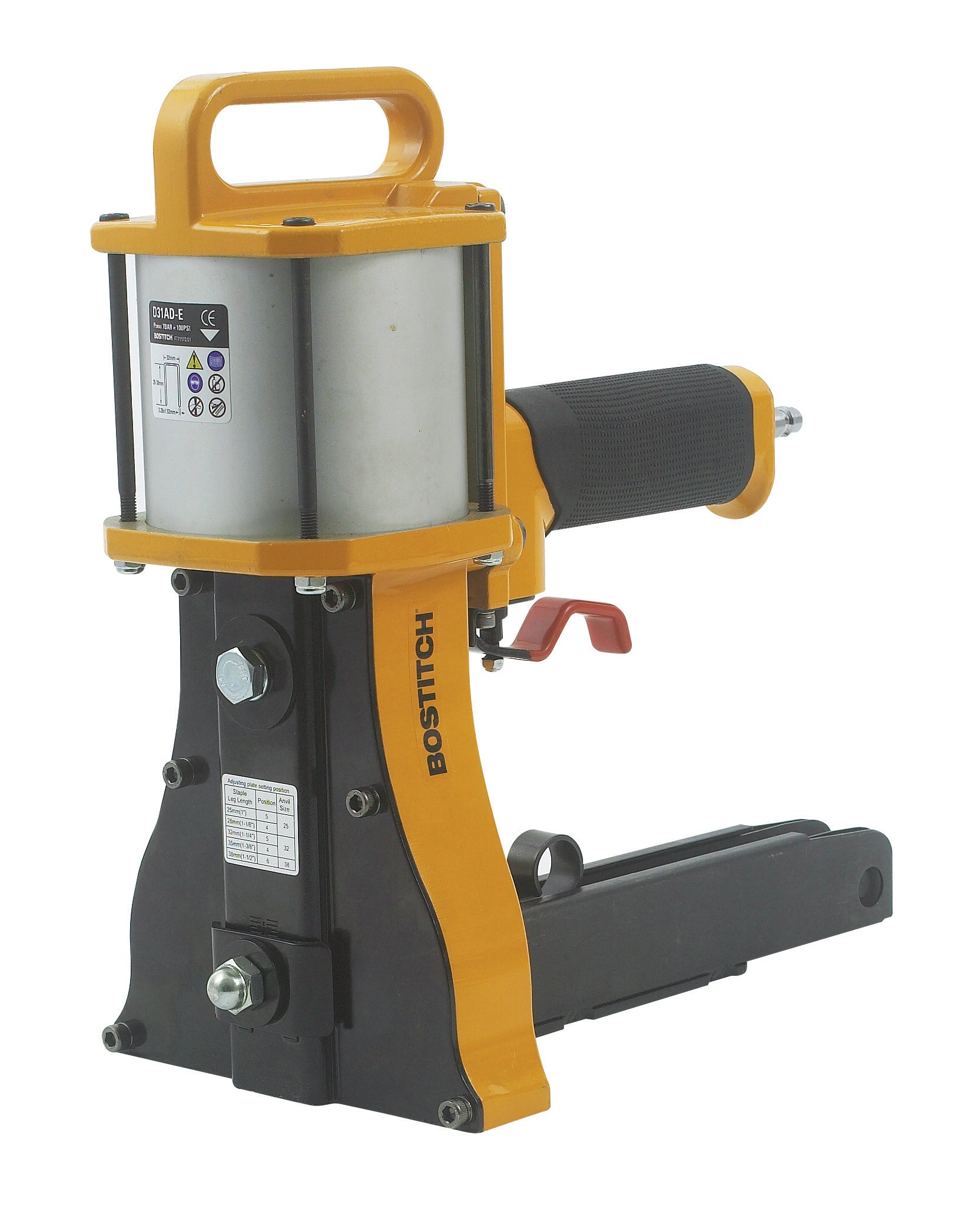

The Bostitch D31AD-E is the largest and most powerful tool in the Bostitch top-sealing range. Pneumatically driven and built for demanding packaging environments, it makes light work of clinching triple wall cartons and materials with a combined thickness of up to 22mm. Its extra wide crown makes it the go-to choice for heavy-duty carton sealing on busy production lines.

The D31AD-E accepts SW9060 series staples from 25mm to 38mm, with wire diameters from 1.52mm to 2.28mm, giving it the versatility to handle a wide range of carton weights and board thicknesses.

Key Features

• Aluminium housing for durability and reduced weight
• Rubber comfort grip for extended use
• Trigger-operated with rear exhaust
• Stick format magazine, 100 staple capacity
• Extra wide 32mm crown for secure carton sealing

Specifications

• Power type: Pneumatic
• Weight: 6.0 kg
• Dimensions: 360(L) x 174(W) x 335(H)mm
• Magazine capacity: 100 staples
• Operating pressure: 5.0–7.0 BAR (70–100 PSI)
• Air consumption: 6.8 litres/shot at 5.6 bar
• Air fitting: 1/4 BSP
• Noise: LpA 89dB / LwA 93dB

Compatible Fasteners — SW9060 Series

• Crown width: 32.0mm
• Wire diameter: 1.52–2.28mm
• Staple length: 25–38mm
