Senco NS20XP, Heavy Wire stapler

Senco NS20XP, Heavy Wire stapler

Regular price £332.01 GBP
Regular price Sale price £332.01 GBP
Sale Sold out
Shipping calculated at checkout.

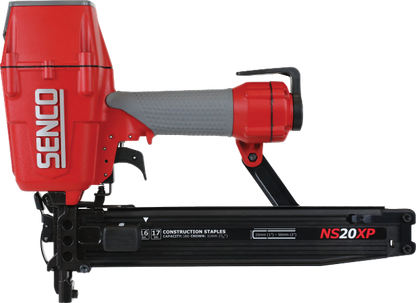

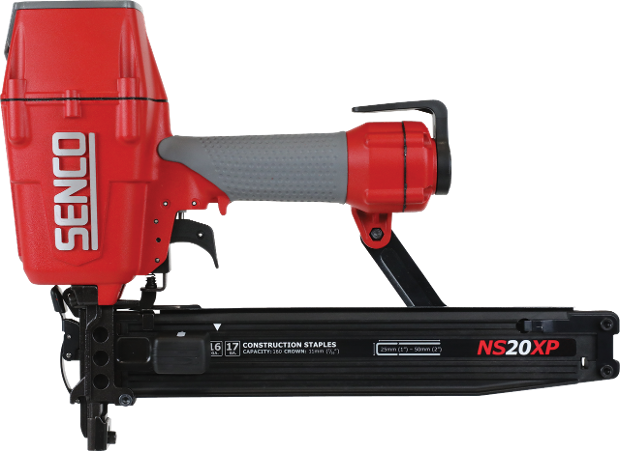

Senco NS20XP, Heavy Wire stapler 9X2001N


The NS20XP heavy wire stapler drives both 16 and 17 gauge staples with lengths from 25mm to 50mm. It is the industry benchmark for construction staplers. The tool combines class-leading power, durability, ergonomics and a competitive price point to provide an unrivalled professional experience in applications like sheathing, furniture framing and roof decking.

Features & Benefits

  • 15% more powerful than all other construction staplers in its class. Well-balanced, ergonomic design for all-day use
  • Rotatable belt hook
  • Enhanced EZ-Clear latch allows for quick access to clear fasteners
  • New drive track design eliminates movement of the staple, enhancing overall drive performance and virtually eliminating fastener jams, skipping and misfires.


Sheathing, furniture framing, roof decking, subflooring, crate and box assembly, pallets, cedar shingles, furring, metal tie-down straps, fascia and soffits, and ridge beam assembly


Technical specifications

Length 381 mm
Firing mode Dual
Air inlet size A3/8" female
Air inlet standard ANPT
Air inlet unit A inch
Air consumption (at 60 shots per minute) 113 l/m
Sound pressure level (Lpa)84 dB
Sound power level (Lwa)97 dB
Staple type 1 N staple
Staple type 2 O staple
Gauge 16 ga.
Magazine capacity 160 pieces
Includes case Yes
Collation type 1 Glue collated
Collation angle 0 º
Fastener type Staples
Oil free  No
Air inlet 13/8" female NPT
Operating pressure 4.8-8.3 bar
Operating temperature range-18-49 °C
Fastener length 125-50 mm
Fastener length 225-50.8 mm
Air inlet size A number 3/8 female

Non-technical specifications

Warranty 5 year(s)
Net weight 2.3
