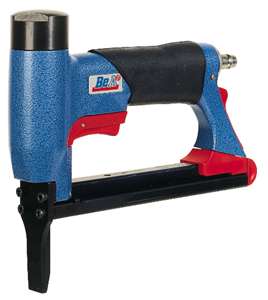

BeA 71/16-436LN Long Nose Tacker

A variation of the successful upholstery stapler 71/16-421. The 50 mm long nose allows for ease of entry into those “hard-to-get-to” places. Low weight, high penetration power combined with integrated silencer and low air consumption are the outstanding feature of this stapler.

Length: 221 mm

Width: 43 mm
Height: 192 mm
Weight: 1.05kg

Car and caravan industry, upholstered furniture and case goods manufacture

Type description: 71/16-436 LN

Article code: 12000074

Magazine type : Bottom loader

Safety: - Not Required

Fastener type: Type 71

Magazine capacity: 190

Fasteners per strip: 1 x 182

Operating pressure: 5 – 6 bar

Max. operating pressure: 6 bar

Air consumption/operation: 0.3 litre / 6 bar Inner hose diameter: Ø 9 mm LW recommended

Emission sound pressure level at the workstation: L pA, 1s, d= 79 dB

Single-shot emission sound pressure level: L WA, 1 s,d= 87 dB

The vibration as per document no. CEN/TC 255 WG 1 N 47.3 is under the declaration limit as per EN 292-1, amendment A.

Extras supplied with the nailer:

Operating instructions, spare parts list, service instructions, silencer. For safety reasons we recommend the BeA single release if working pressure allows this.

Subject to technical modifications.

Article code Description

14403330 Remote valve, compl.

14406168 Back nose assembly set 6 mm
